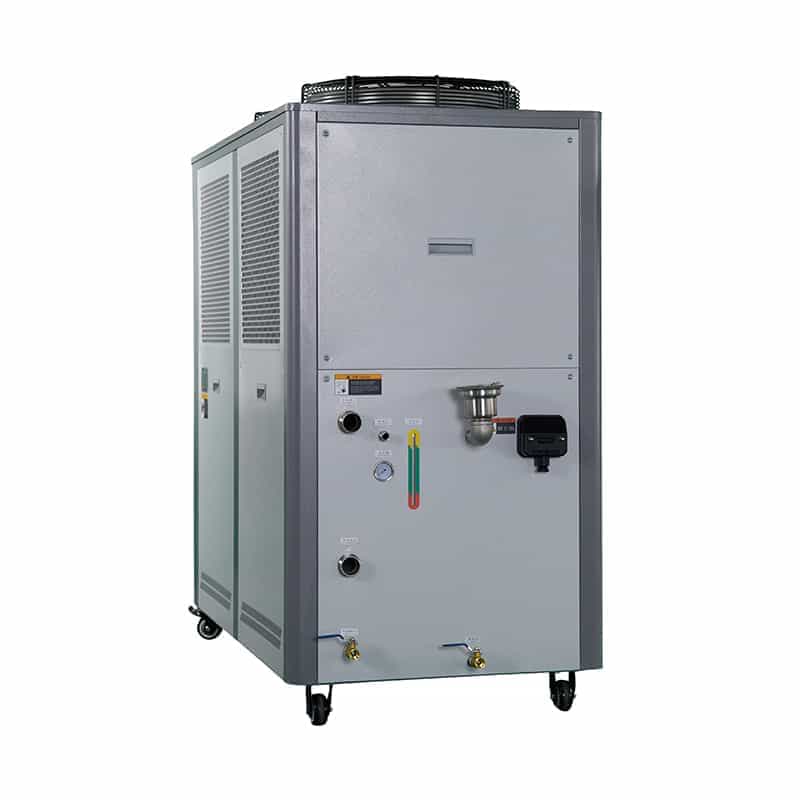

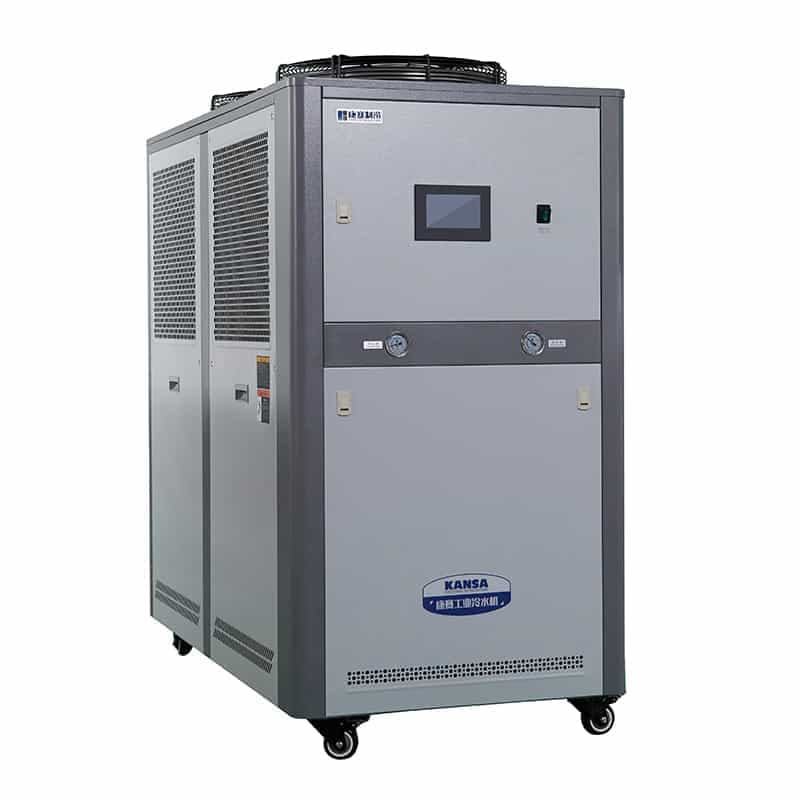

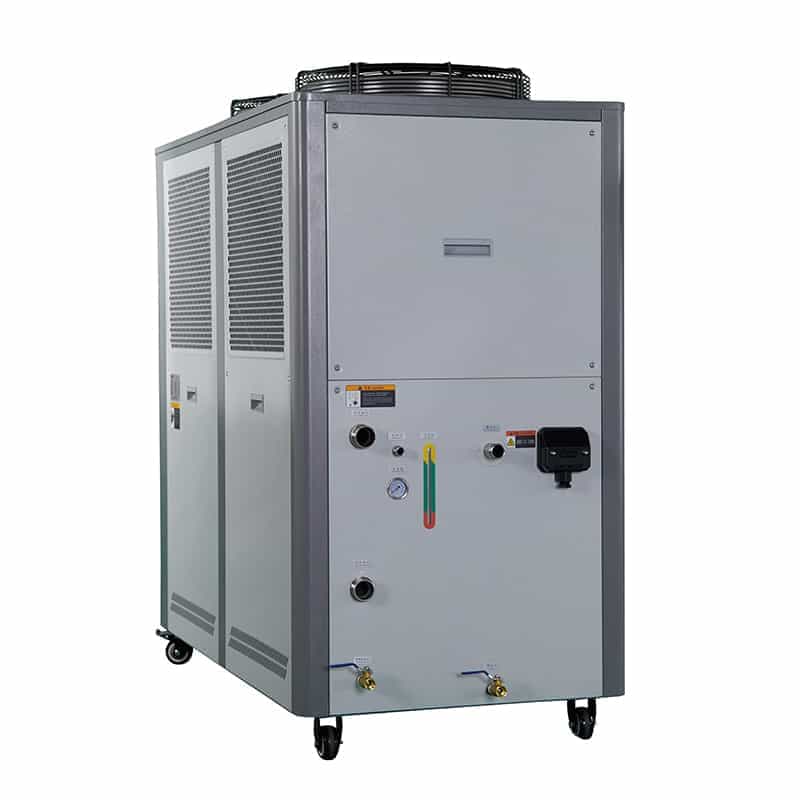

ICA-10&12 Air-Cooled Industrial Chillers

Working Principle

This series of chillers operates on a vapor-compression refrigeration cycle, integrating a scroll compressor, evaporator, air-cooled condenser, and thermal expansion valve. Liquid refrigerant absorbs heat from the cooling medium in the evaporator and vaporizes, then the scroll compressor transforms it into high-temperature, high-pressure gas. The gas is condensed into liquid in the air-cooled condenser via forced ventilation, and returns to the evaporator after pressure reduction through the expansion valve, forming a continuous cooling cycle.

Key Features

1.High Efficiency & Stability：Equipped with scroll compressors and high-efficiency shell-and-tube heat exchangers, delivering 10HP cooling capacity up to 29.5kW and 12HP up to 35kW for diverse industrial applications.

2.Intelligent Control：Microcomputer control system enables precise temperature adjustment (5°C-35°C), with user-friendly interfaces supporting multi-unit synchronization and remote monitoring.

3.Environmental Adaptability：No cooling towers or water circuits required. The air-cooled design suits water-scarce regions or mobile applications, supporting single/multi-unit installations.

4.Safety & Reliability：Comprehensive safety modules including phase failure protection, overload protection, and high/low pressure safeguards. Stainless steel tanks and anti-corrosion finned condensers enhance durability.

5.Quiet & Energy-Saving：Low-noise fans and energy-efficient compressors ensure operation at approximately 65dB, compliant with industrial environmental standards.

Typical Applications

Suitable for plastic molding, chemical reactor temperature control, pharmaceutical cold storage, mold cooling, food freezing, electroplating solution temperature regulation, and other scenarios requiring equipment mobility.

Specifications

Model Item			ICA-0.6	ICA-1	ICA-2	ICA-3	ICA-5	ICA-6	ICA-8	ICA-10
Performance parameter
Cooling capacity		kW	1.6	2.7	5.2	9.1	15.0	18.0	23.0	29.5
Cooling capacity		10³kcal/h	1.4	2.3	4.5	7.8	12.9	15.5	19.8	25.4
Power source		V/ph/Hz	220/1/50			380/3/50
Power input		kW	0.9	1.2	2.2	2.9	5.3	6.5	8.4	10.5
Current		A	4.6	5.9	11.3	8.2	11.7	12.2	20.0	23.4
Main component
Compressor	Type		Rotor type				Scroll type
Compressor	Power	kW	0.5	0.8	1.6	2.3	4.2	5.1	6.9	8.7
Pump	Power	kW	0.25	0.25	0.37	0.37	0.55	0.75	0.75	0.75
	Head	m	36	34	26	24	28	33	30	27
	Flow	m³/h	0.28	0.46	0.89	1.6	2.6	3.1	4.0	5.1
	Flow	L/min	4.6	7.7	14.8	26.7	43.3	51.7	66.0	85.0
Tank capacity		L	12	20	35	60	70	70	100	135
Pipe size/Noise/Weight/Dimension
Pipe size		DN	15		20	25				40
Noise		dB(A)	56	58	58	60	61	62	64	65
Weight		kg	50	68	108	140	185	210	260	310
Dim.	L	mm	420	500	600	680	750	750	1350	1510
	W	mm	420	500	600	680	750	750	680	750
	H	mm	815	950	1160	1360	1480	1480	1360	1480

Model Item			ICA-12	ICA-15	ICA-20	ICA-25	ICA-30	ICA-40	ICA-50	ICA-60
Performance parameter
Cooling capacity		kW	35	44	58.5	69.0	86.0	116.0	140.0	168.0
Cooling capacity		10³kcal/h	30.1	37.8	50.3	59.3	74.1	100.0	120.0	145.0
Power source		V/ph/Hz	380/3/50
Power input		kW	12.5	15.0	21.1	24.0	30.0	41.3	48.0	58.5
Current		A	24.0	27.7	41.7	46.7	57.0	76.0	88.0	110.0
Main component
Compressor	type		Scroll type
Compressor	Power	kW	10.1	12.5	17.4	20.2	25.0	34.8	40.6	50.0
Pump	Power	kW	1.2	1.2	2.2	2.2	2.2	3.5	3.5	4.0
	Head	m	29	27	27	26	25	34	29	25
	Flow	m³/h	6.0	7.6	10.0	11.8	14.8	20.0	24.0	28.9
	Flow	L/min	100	127	167	197	247	333	400	480
Tank capacity		L	135	155	230	230	230	300	300	300
Pipe size/Noise/Weight/Dimension
Pipe size		DN	40		50				65
Noise		dB(A)	65	66	67	68	68	69	69	69
Weight		kg	340	415	620	670	780	1100	1300	1500
Dim.	L	mm	1510	1785	2080	2080	2080	2200	3000	3400
	W	mm	750	915	1050	1050	1050	1200	1200	1200
	H	mm	1480	1630	1820	1820	1910	2135	2120	2135
