ICA-2 Air-Cooled Industrial Chiller

Description

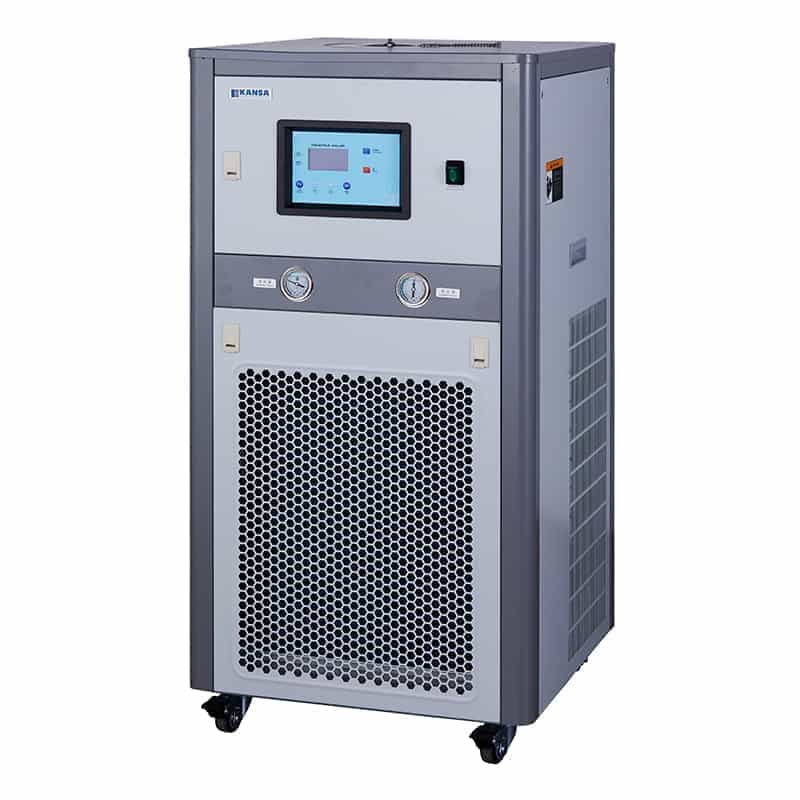

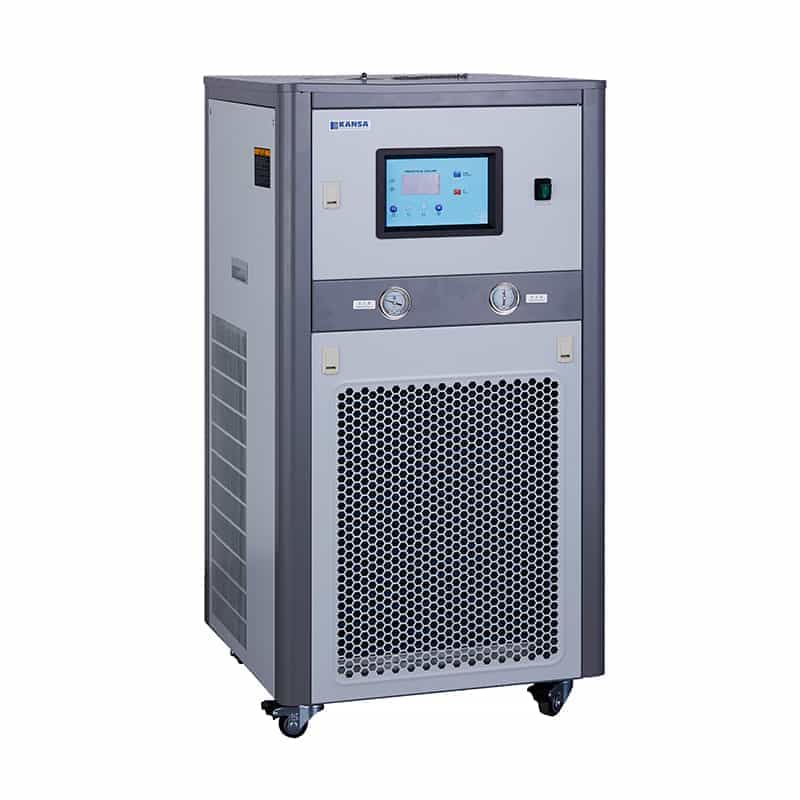

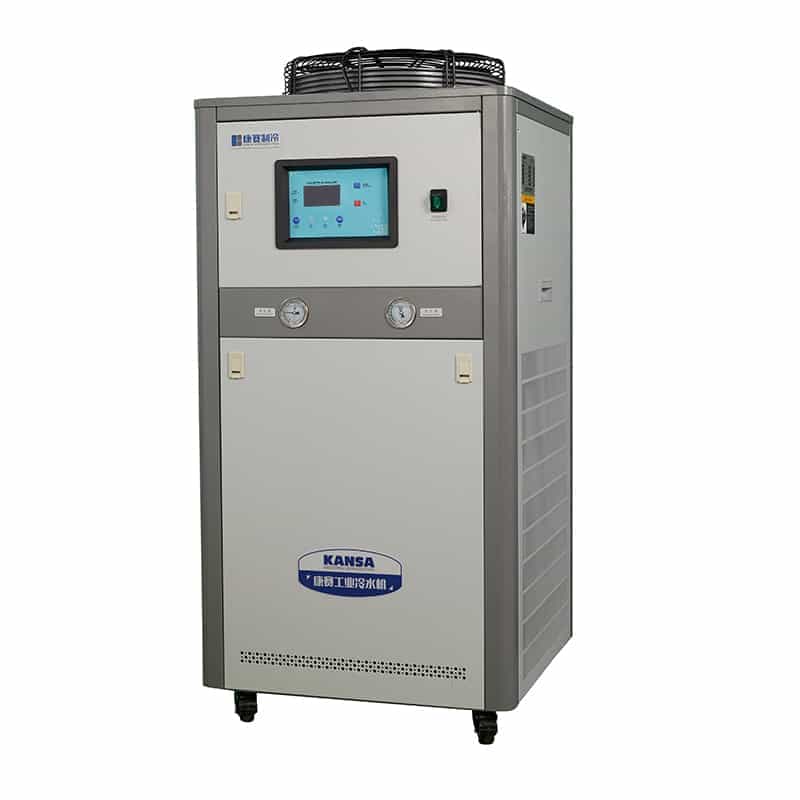

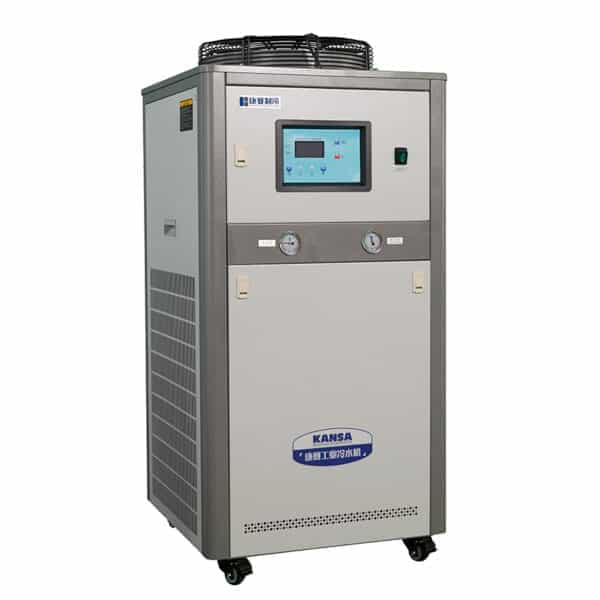

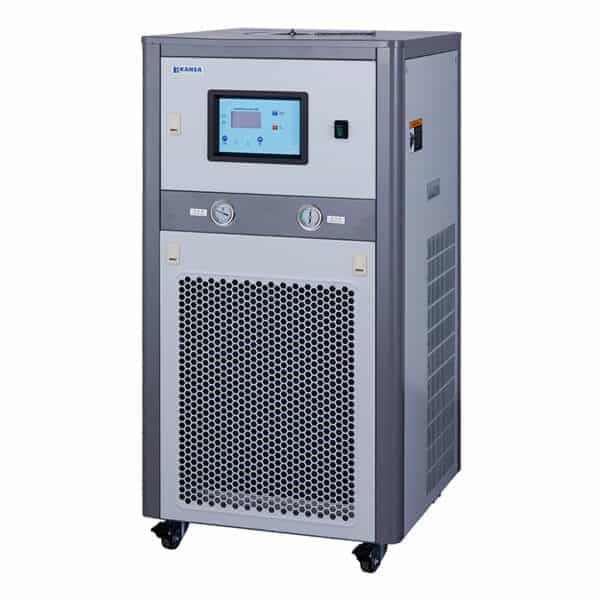

ICA-2 Air-Cooled Industrial Chiller

This is a 2 HP air-cooled industrial chiller designed for medium cooling demands in industrial settings. It provides efficient heat dissipation via air cooling, eliminating the need for complex water circuits and offering easy installation. Suitable for temperature control in machining, medical equipment, and laboratories, the unit operates reliably with simple maintenance, adapting to various industrial applications.

Key Features

✅ Air-Cooled Convenience: No cooling tower or plumbing required, plug-and-play for space-constrained or water-scarce environments.

✅ Energy Efficiency: Eco-friendly refrigerant and smart inverter technology reduce operational costs.

✅ Precise Control: Microcomputer panel enables ±0.1℃ temperature adjustment for process consistency.

✅ Robust Reliability: Industrial-grade construction with multi-protection (overload, high/low pressure safeguards).

Typical Applications

CNC machining center spindle cooling

Continuous laser cutting machine cooling

Vacuum coating process temperature control

Medical equipment cooling (e.g., MRI systems)

Chemical reactor temperature stabilization

Service Support

Modular expansion solutions

Global certifications

rapid response support network

Specifications

Model Item			ICA-0.6	ICA-1	ICA-2	ICA-3	ICA-5	ICA-6	ICA-8	ICA-10
Performance parameter
Cooling capacity		kW	1.6	2.7	5.2	9.1	15.0	18.0	23.0	29.5
Cooling capacity		10³kcal/h	1.4	2.3	4.5	7.8	12.9	15.5	19.8	25.4
Power source		V/ph/Hz	220/1/50			380/3/50
Power input		kW	0.9	1.2	2.2	2.9	5.3	6.5	8.4	10.5
Current		A	4.6	5.9	11.3	8.2	11.7	12.2	20.0	23.4
Main component
Compressor	Type		Rotor type				Scroll type
Compressor	Power	kW	0.5	0.8	1.6	2.3	4.2	5.1	6.9	8.7
Pump	Power	kW	0.25	0.25	0.37	0.37	0.55	0.75	0.75	0.75
	Head	m	36	34	26	24	28	33	30	27
	Flow	m³/h	0.28	0.46	0.89	1.6	2.6	3.1	4.0	5.1
	Flow	L/min	4.6	7.7	14.8	26.7	43.3	51.7	66.0	85.0
Tank capacity		L	12	20	35	60	70	70	100	135
Pipe size/Noise/Weight/Dimension
Pipe size		DN	15		20	25				40
Noise		dB(A)	56	58	58	60	61	62	64	65
Weight		kg	50	68	108	140	185	210	260	310
Dim.	L	mm	420	500	600	680	750	750	1350	1510
	W	mm	420	500	600	680	750	750	680	750
	H	mm	815	950	1160	1360	1480	1480	1360	1480

Model Item			ICA-12	ICA-15	ICA-20	ICA-25	ICA-30	ICA-40	ICA-50	ICA-60
Performance parameter
Cooling capacity		kW	35	44	58.5	69.0	86.0	116.0	140.0	168.0
Cooling capacity		10³kcal/h	30.1	37.8	50.3	59.3	74.1	100.0	120.0	145.0
Power source		V/ph/Hz	380/3/50
Power input		kW	12.5	15.0	21.1	24.0	30.0	41.3	48.0	58.5
Current		A	24.0	27.7	41.7	46.7	57.0	76.0	88.0	110.0
Main component
Compressor	type		Scroll type
Compressor	Power	kW	10.1	12.5	17.4	20.2	25.0	34.8	40.6	50.0
Pump	Power	kW	1.2	1.2	2.2	2.2	2.2	3.5	3.5	4.0
	Head	m	29	27	27	26	25	34	29	25
	Flow	m³/h	6.0	7.6	10.0	11.8	14.8	20.0	24.0	28.9
	Flow	L/min	100	127	167	197	247	333	400	480
Tank capacity		L	135	155	230	230	230	300	300	300
Pipe size/Noise/Weight/Dimension
Pipe size		DN	40		50				65
Noise		dB(A)	65	66	67	68	68	69	69	69
Weight		kg	340	415	620	670	780	1100	1300	1500
Dim.	L	mm	1510	1785	2080	2080	2080	2200	3000	3400
	W	mm	750	915	1050	1050	1050	1200	1200	1200
	H	mm	1480	1630	1820	1820	1910	2135	2120	2135
