Description
Specifications
All specifications are at your fingertips

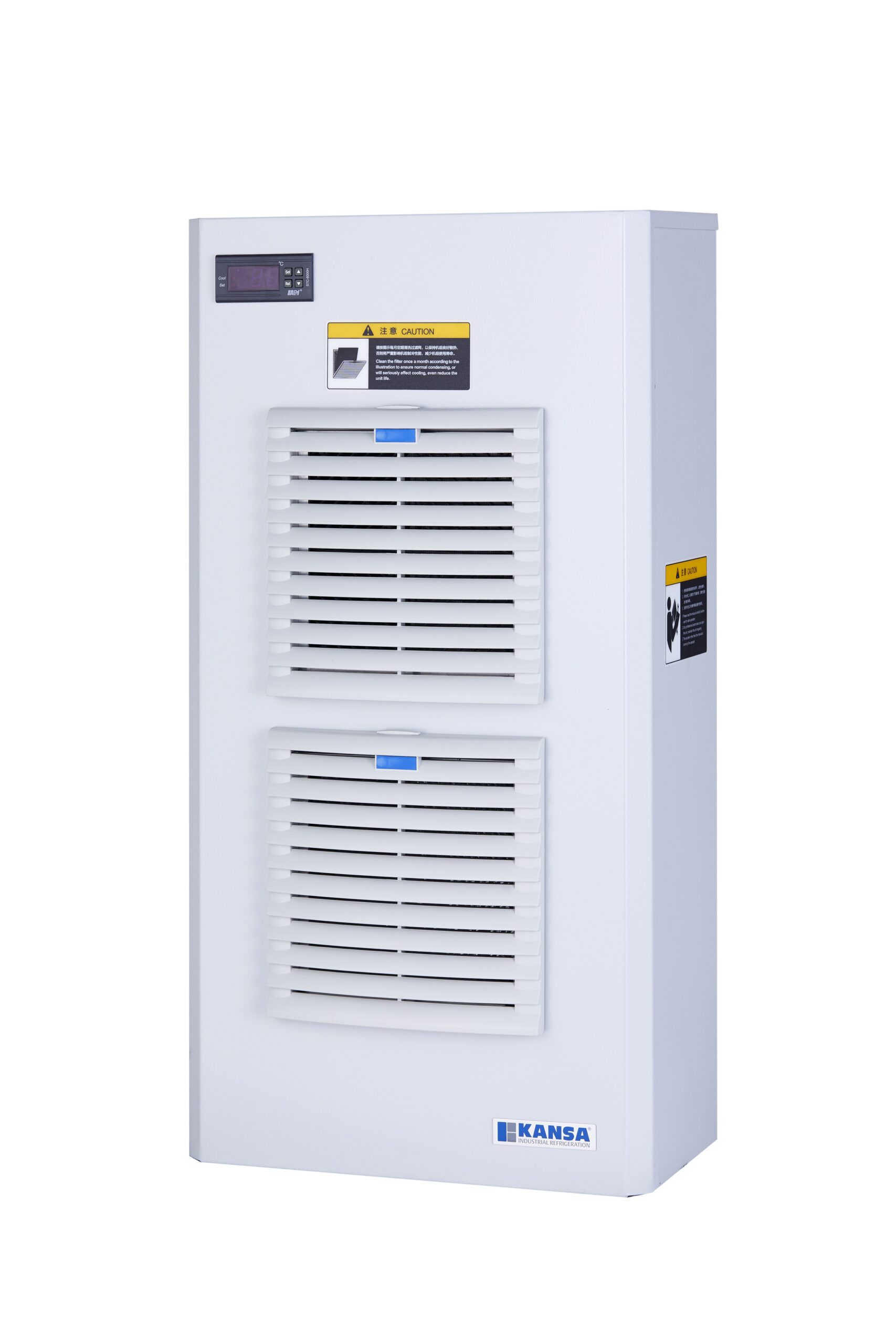

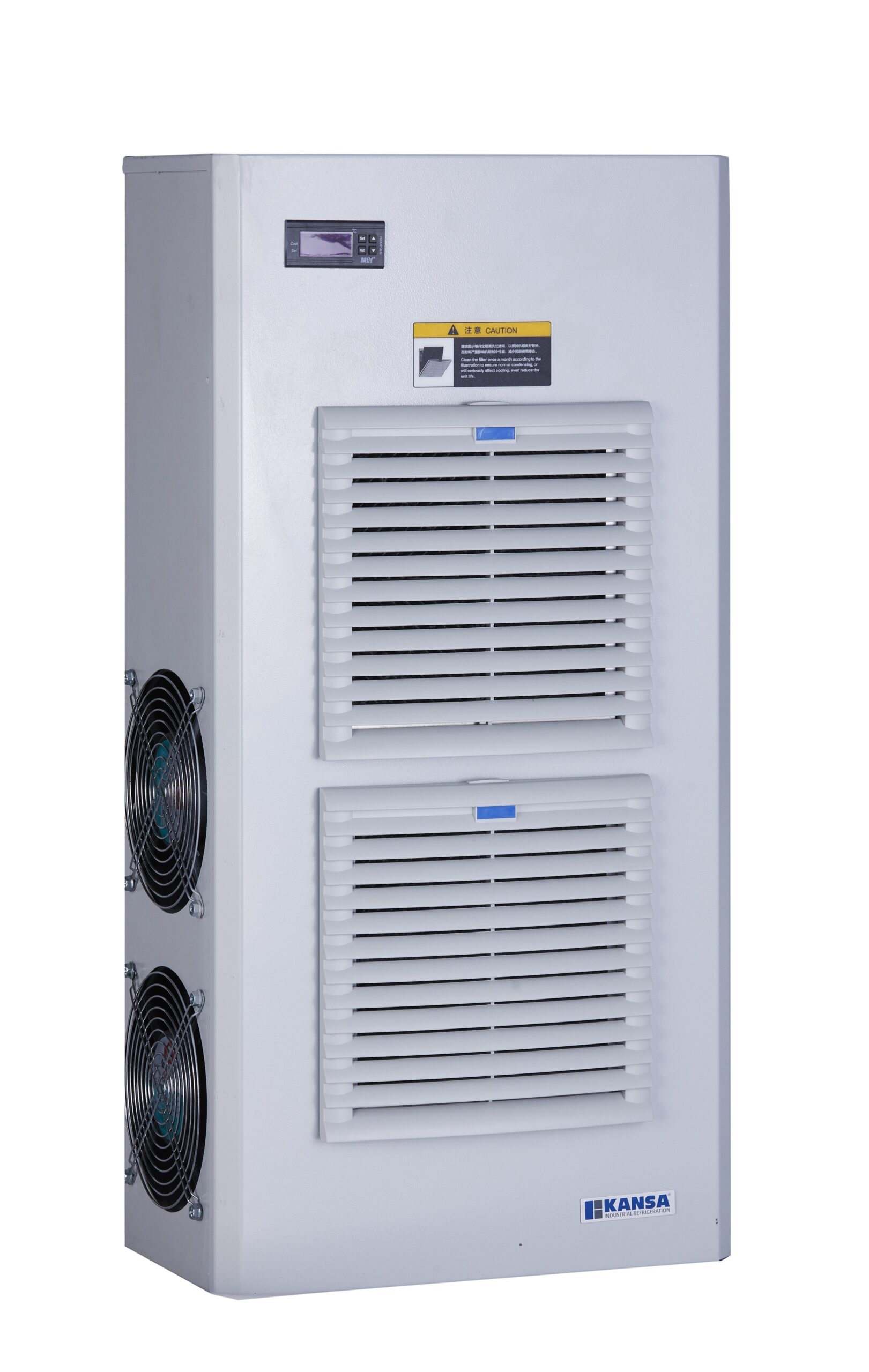

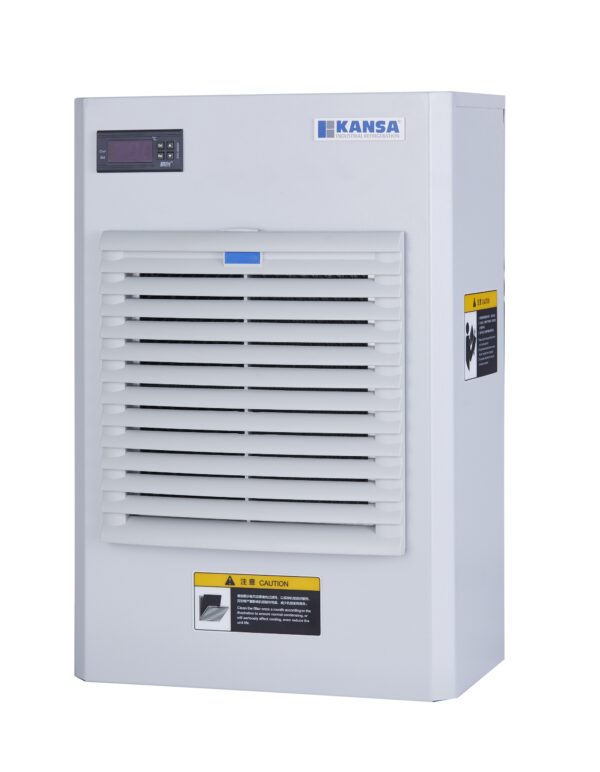

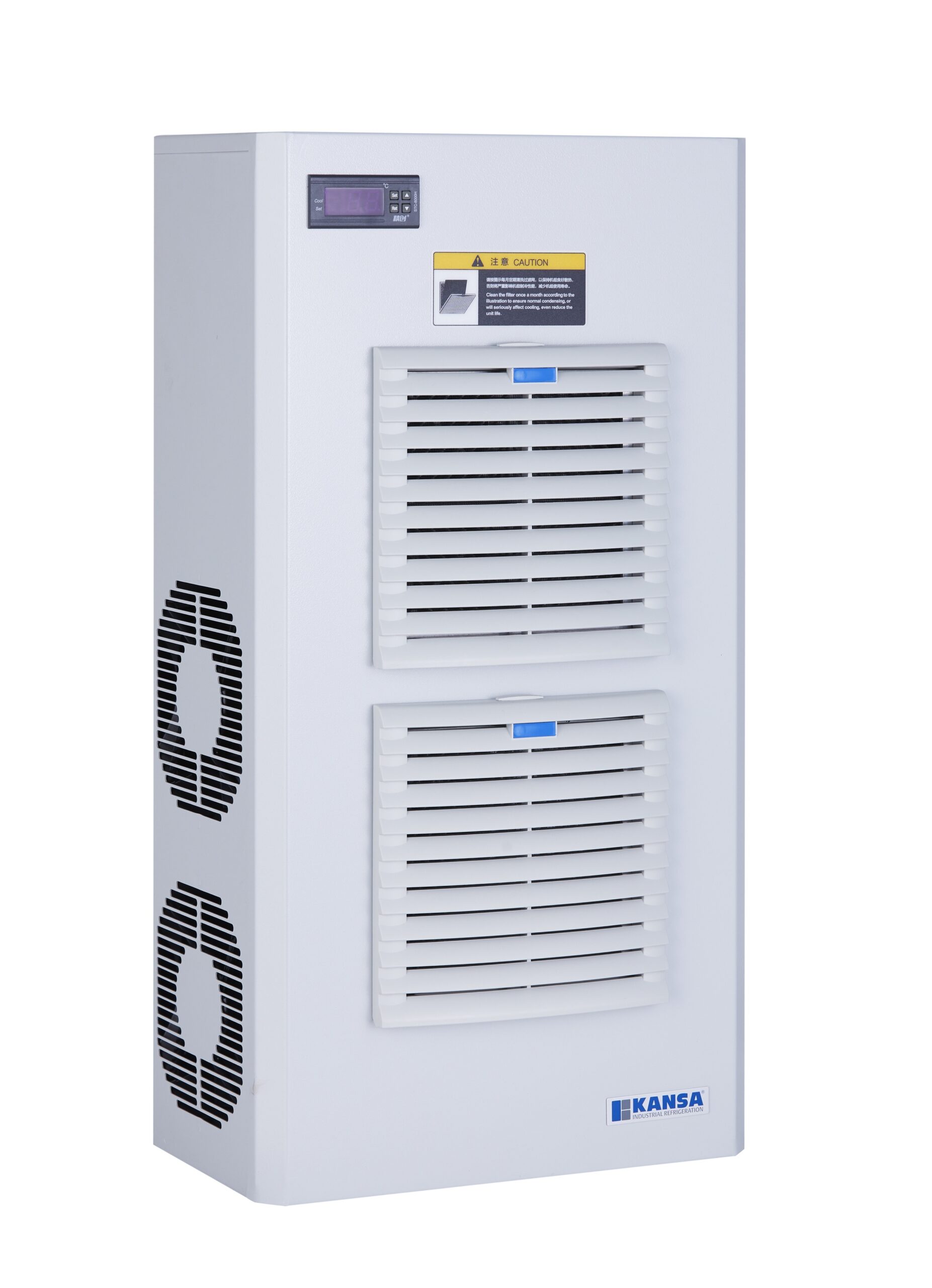

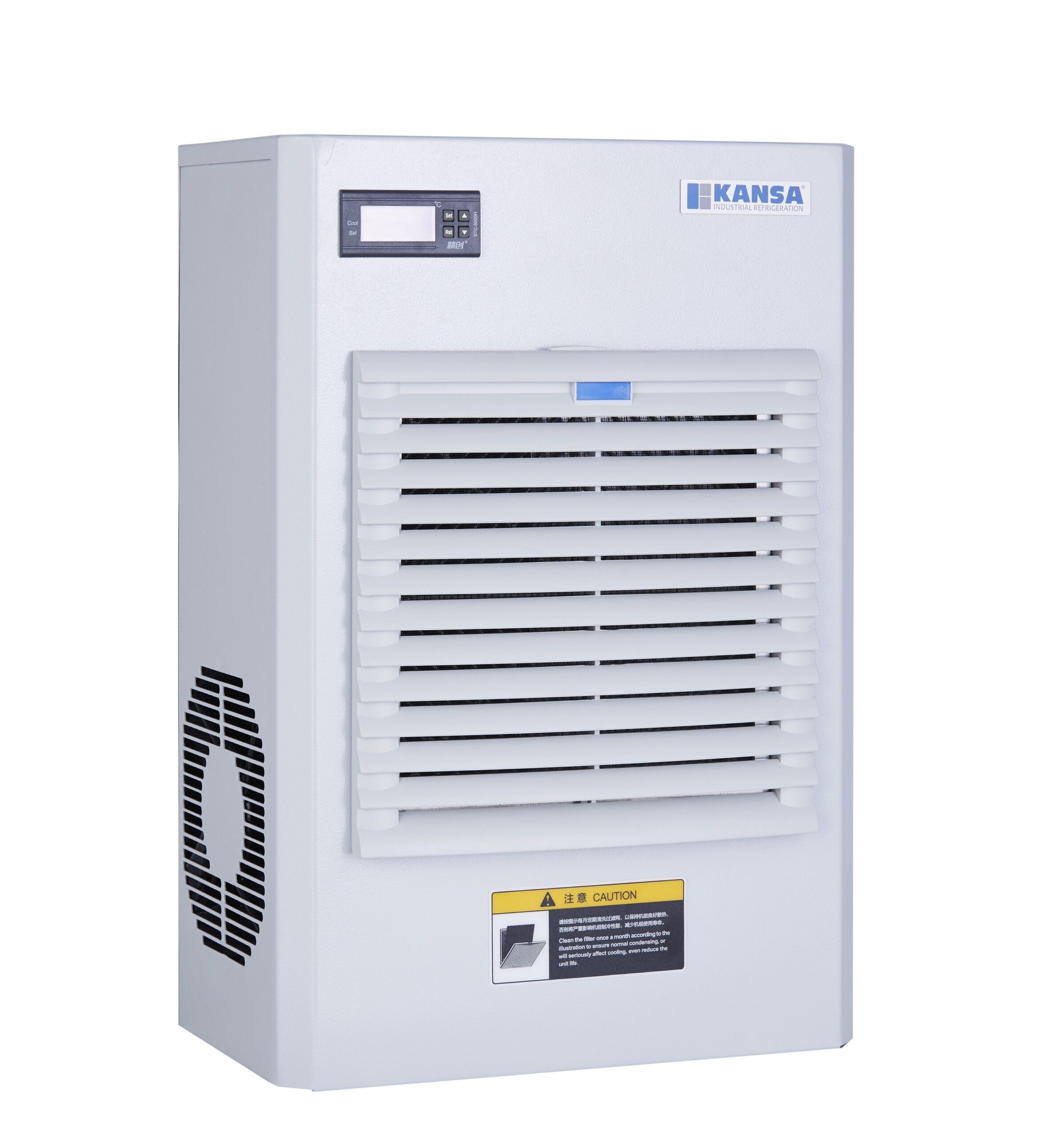

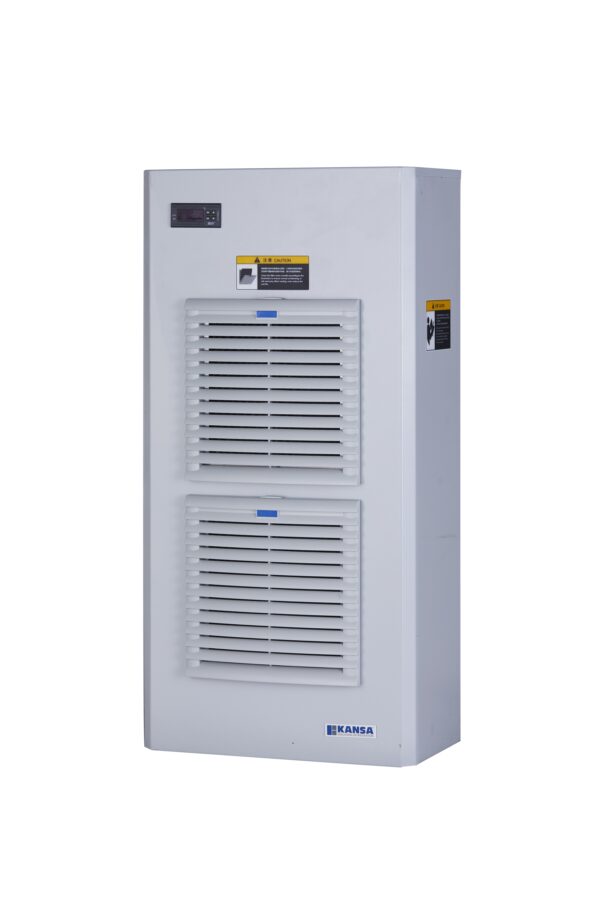

Model CAW-320 CAW-450 CAW-630 CAW-900 CAW-1200
Cooling capacity W 320 450 630 900 1200
Btu/Hr 1092 1536 2150 3072 4096
Cabinet temperature range ℃ 15-45
Ambient temperature range ℃ 15-55
System Max. pressure bar 26
Power source V/ph/Hz 220/1/50
Rated current A 1.2 1.4 1.6 2.6 3.5
Input power W 245 295 355 520 780
Air volume inside m³ /h 170 240 330 490 560
Air volume outside m³ /h 325 450 575 725 860
Refrigerant R134a R407C/R22
Internal IP level IP54
External IP level IP30
Noise dB(A) 55 56 56 57 58
Weight kg 14 16 25 30 40
Dimension High mm 485 485 680 680 820
Width mm 350 325 325 325 400
Deep mm 190 190 190 190 220

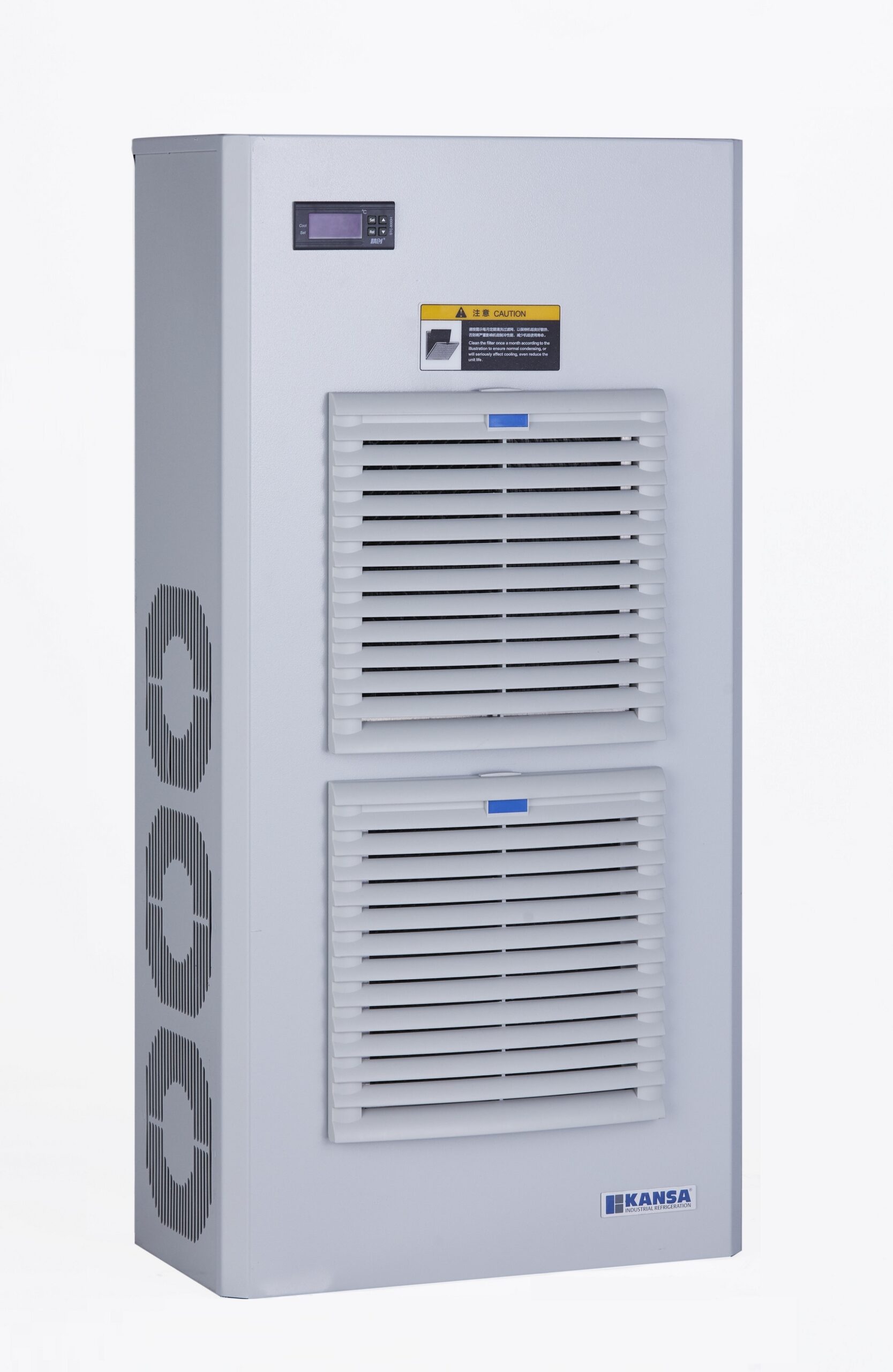

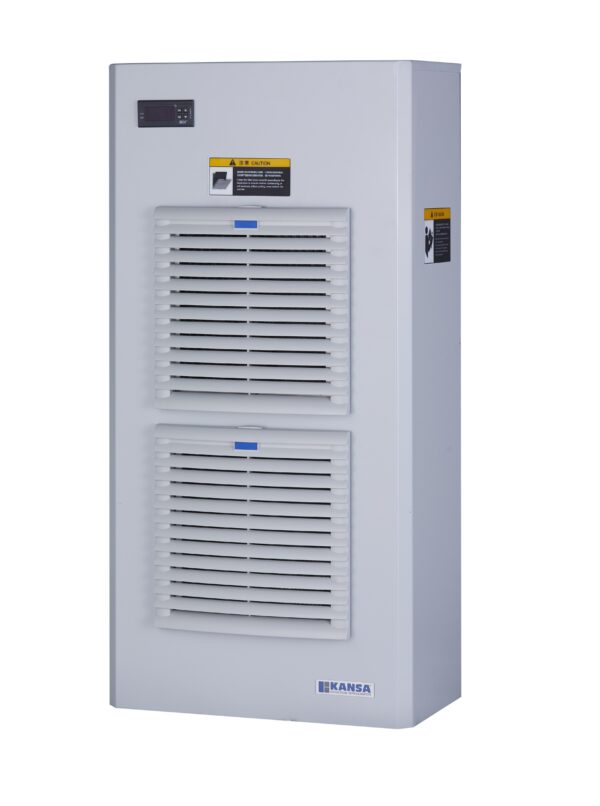

Model CAW-1600 CAW-2000 CAW-2500 CAW-3200 CAW-4500
Cooling capacity W 1600 2000 2500 3200 4500
Btu/Hr 5461 6826 8533 10922 15358
Cabinet temperature range ℃ 15-45
Ambient temperature range ℃ 15-55
System Max. pressure bar 26
Power source V/ph/Hz 220/1/50
Rated current A 4.2 5.3 5.9 6.5 8.9
Input power W 905 1150 1300 1450 1950
Air volume inside m³ /h 580 880 950 1100 1300
Air volume outside m³ /h 950 1250 1350 1450 1510
Refrigerant R22/R407C
Internal IP level IP54
External IP level IP30
Noise dB(A) 60 62 63 65 66
Weight kg 48 55 60 75 98
Dimension High mm 820 1080 1080 1080 1100
Width mm 400 450 450 450 555
Deep mm 220 260 260 260 330
Support customization
Technological innovation
We never stop innovating…
Stainless steel shell and tube evaporator
Innovative V-shaped fin condenser
Innovative new cylindrical water tank
High efficiency and low noise fan
Intelligent touch screen controller
High precision controller
Powerful energy saving
Very power-saving!
Copper tube with internal thread
Sinusoidal heat transfer fins
Electric expansion PID technology
Innovative refrigerant distribution technology
Professional air flow channel design
Air volume automatic control
Multiple protection
Condensed water evaporation
Compressor protection
Dehumidification optional
Heating optional
Over temperature protection
Water level alarm
Pressure alarm
Effective filtration
Quality control
Every detail, we are meticulous …
Famous brand compressor
Imported brand accessories
Keep improving everywhere
3D pipe bending machine
Automatic refrigerant adding machine
Automatic welding machine
Precision technology
Precision technology makes products better
Sheet metal precision drawing
Drawing forming guide ring
Robot bending machine
Laser welding
Automatic cutting machine
Automatic joint welding
