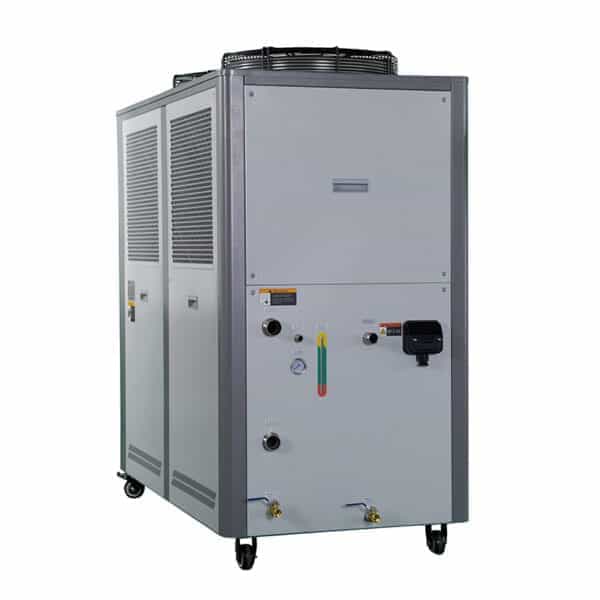

ICA-10U 35℃ Low Temperature Chiller

Cooling capacity: 7.3kW

Total power input: 7.2kW

Pump power input: 1.3kW

Pump head: 42m

Pump water flow rate: 1.26m³/h

Noise: 68db(A)

Cooling capacity: 7.3kW

Total power input: 7.2kW

Pump power input: 1.3kW

Pump head: 42m

Pump water flow rate: 1.26m³/h

Noise: 68db(A)

Share:

Message

Email

I. Advantages

The -35°C low-temperature chiller provides a stable -35°C deep cold source with a temperature control accuracy of ±1°C-±2°C. It is compatible with low-temperature refrigerants such as antifreeze and calcium chloride brine, offers anti-freeze and anti-condensation properties, and operates with low energy consumption. It also supports intelligent temperature control and fault warnings to ensure a stable cryogenic environment.

II. Applications

This chiller is primarily used in deep cryogenic applications: in the industrial sector for low-temperature material performance testing and semiconductor cryogenic processing; in the food industry for ultra-low temperature freezing of seafood and quick-frozen food processing; and in the pharmaceutical industry for stem cell storage and low-temperature transportation of specialized vaccines, meeting stringent cryogenic requirements.

I. Advantages

The -35°C low-temperature chiller provides a stable -35°C deep cold source with a temperature control accuracy of ±1°C-±2°C. It is compatible with low-temperature refrigerants such as antifreeze and calcium chloride brine, offers anti-freeze and anti-condensation properties, and operates with low energy consumption. It also supports intelligent temperature control and fault warnings to ensure a stable cryogenic environment.

II. Applications

This chiller is primarily used in deep cryogenic applications: in the industrial sector for low-temperature material performance testing and semiconductor cryogenic processing; in the food industry for ultra-low temperature freezing of seafood and quick-frozen food processing; and in the pharmaceutical industry for stem cell storage and low-temperature transportation of specialized vaccines, meeting stringent cryogenic requirements.

Item / Model			ICA-2U	ICA-3U	ICA-5U	ICA-8U	ICA-10U	ICA-12U
Cooling capacity		kW	1.2	1.6	4.8	6.3	7.3	8.9
Cooling capacity		10 ³ kcal/h	1.03	1.4	4.1	5.4	6.3	7.7
Power source		V/ph/Hz	380/3/50
Total power input		kW	2.2	2.7	4.2	5.7	7.2	8.7
Rated current		A	4.9	6.0	9.3	12.5	15.2	17.5
Compressor	Type		Flexible scroll type
Compressor	Power input	kW	1.2	1.7	3.0	4.1	4.9	5.5
Pump	Power input	kW	0.75	0.75	0.75	1.3	1.3	2.2
	Head	m	42	44	41	45	42	40
	Water flow rate	m³ /h	0.21	0.28	0.79	1.08	1.26	1.53
	Water flow rate	L/min	3.4	4.6	13.2	18.0	21.0	25.5
Tank capacity		L	40	50	70	100	155	155
Water pipe size		DN	20	25			40
Noise		dB(A)	62	63	65	68	68	69
Weight		kg	110	162	188	210	260	310
Dimension	Lenth	mm	600	680	750	1350	1510	1510
	Width	mm	600	680	750	680	750	750
	High	mm	1160	1360	1480	1360	1480	1480

Item / Model			ICA-15U	ICA-20U	ICA-25U	ICA-30U	ICA-40U	ICA-50U
Cooling capacity		kW	10.9	15.0	17.8	21.8	30.0	35.6
Cooling capacity		10 ³ kcal/h	9.4	12.9	15.3	18.7	25.8	30.6
Power source		V/ph/Hz	380/3/50
Total power input		kW	10.2	15.3	16.5	20.0	26.6	30.0
Rated current		A	22.5	33.7	36.3	45.0	58.5	66.0
Compressor	Type		Flexible scroll type
Compressor	Power input	kW	6.7	9.8	11.0	13.4	19.6	22.0
Pump	Power input	kW	2.2	4.0	4.0	4.0	4.0	4.0
	Head	m	40	42	41	45	42	40
	Water flow rate	m³ /h	1.88	2.58	3.06	3.75	5.16	6.12
	Water flow rate	L/min	31.3	43.0	51.0	62.5	86.0	102.0
Tank capacity		L	155	230	230	230	300	300
Water pipe size		DN	40	50
Noise		dB(A)	69	68	68	68	69	69
Weight		kg	415	620	670	780	1100	1300
Dimension	Lenth	mm	1785	2080	2080	2080	2200	3000
	Width	mm	915	1050	1050	1050	1200	1200
	High	mm	1630	1720	1720	1910	2135	2120

Support customization

Item / Model			ICA-2U	ICA-3U	ICA-5U	ICA-8U	ICA-10U	ICA-12U
Cooling capacity		kW	1.2	1.6	4.8	6.3	7.3	8.9
Cooling capacity		10 ³ kcal/h	1.03	1.4	4.1	5.4	6.3	7.7
Power source		V/ph/Hz	380/3/50
Total power input		kW	2.2	2.7	4.2	5.7	7.2	8.7
Rated current		A	4.9	6.0	9.3	12.5	15.2	17.5
Compressor	Type		Flexible scroll type
Compressor	Power input	kW	1.2	1.7	3.0	4.1	4.9	5.5
Pump	Power input	kW	0.75	0.75	0.75	1.3	1.3	2.2
	Head	m	42	44	41	45	42	40
	Water flow rate	m³ /h	0.21	0.28	0.79	1.08	1.26	1.53
	Water flow rate	L/min	3.4	4.6	13.2	18.0	21.0	25.5
Tank capacity		L	40	50	70	100	155	155
Water pipe size		DN	20	25			40
Noise		dB(A)	62	63	65	68	68	69
Weight		kg	110	162	188	210	260	310
Dimension	Lenth	mm	600	680	750	1350	1510	1510
	Width	mm	600	680	750	680	750	750
	High	mm	1160	1360	1480	1360	1480	1480

Item / Model			ICA-15U	ICA-20U	ICA-25U	ICA-30U	ICA-40U	ICA-50U
Cooling capacity		kW	10.9	15.0	17.8	21.8	30.0	35.6
Cooling capacity		10 ³ kcal/h	9.4	12.9	15.3	18.7	25.8	30.6
Power source		V/ph/Hz	380/3/50
Total power input		kW	10.2	15.3	16.5	20.0	26.6	30.0
Rated current		A	22.5	33.7	36.3	45.0	58.5	66.0
Compressor	Type		Flexible scroll type
Compressor	Power input	kW	6.7	9.8	11.0	13.4	19.6	22.0
Pump	Power input	kW	2.2	4.0	4.0	4.0	4.0	4.0
	Head	m	40	42	41	45	42	40
	Water flow rate	m³ /h	1.88	2.58	3.06	3.75	5.16	6.12
	Water flow rate	L/min	31.3	43.0	51.0	62.5	86.0	102.0
Tank capacity		L	155	230	230	230	300	300
Water pipe size		DN	40	50
Noise		dB(A)	69	68	68	68	69	69
Weight		kg	415	620	670	780	1100	1300
Dimension	Lenth	mm	1785	2080	2080	2080	2200	3000
	Width	mm	915	1050	1050	1050	1200	1200
	High	mm	1630	1720	1720	1910	2135	2120
