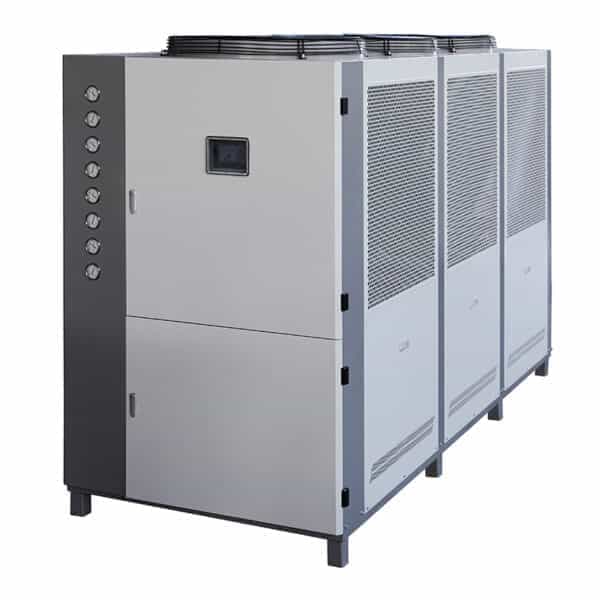

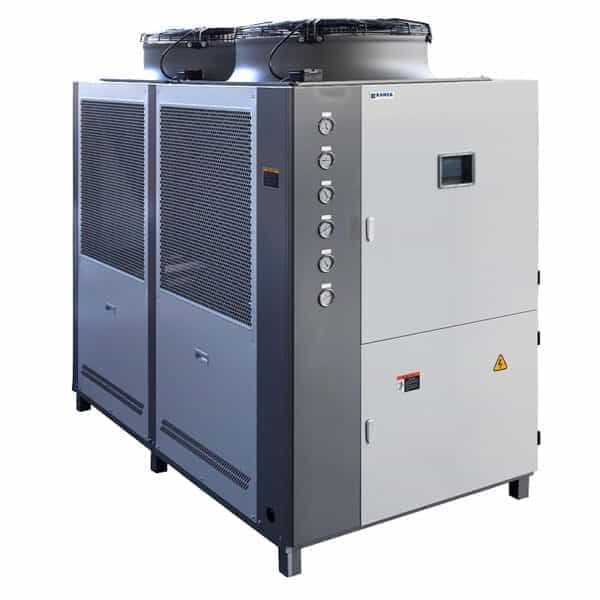

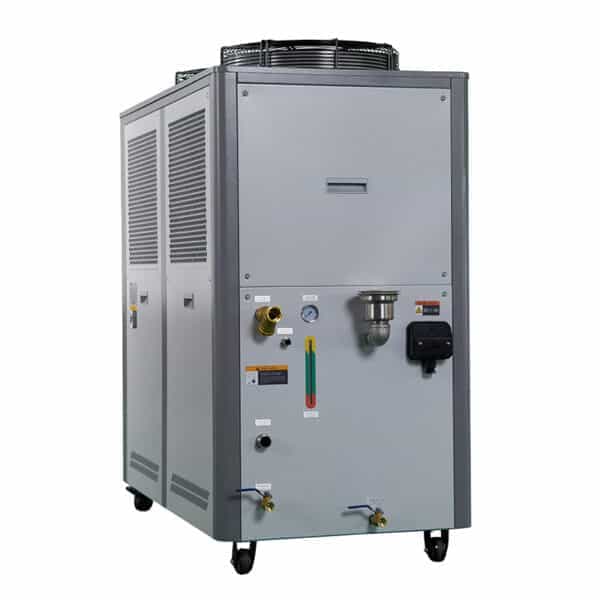

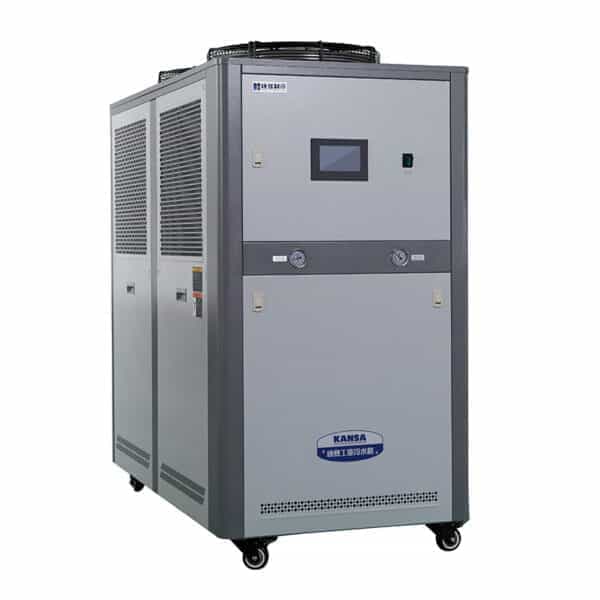

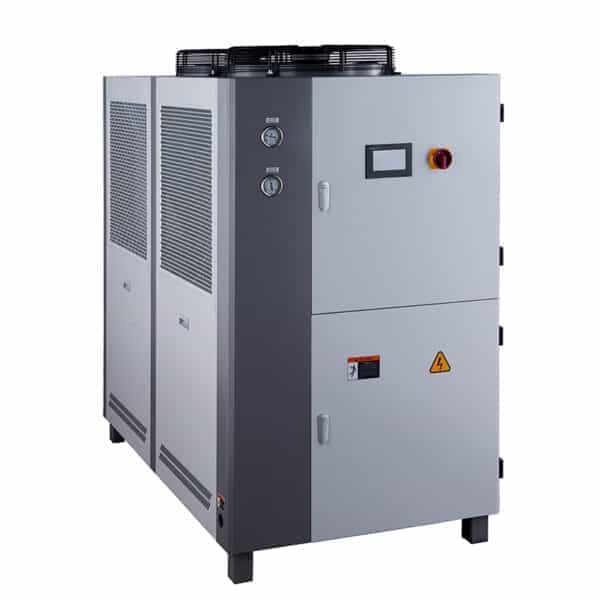

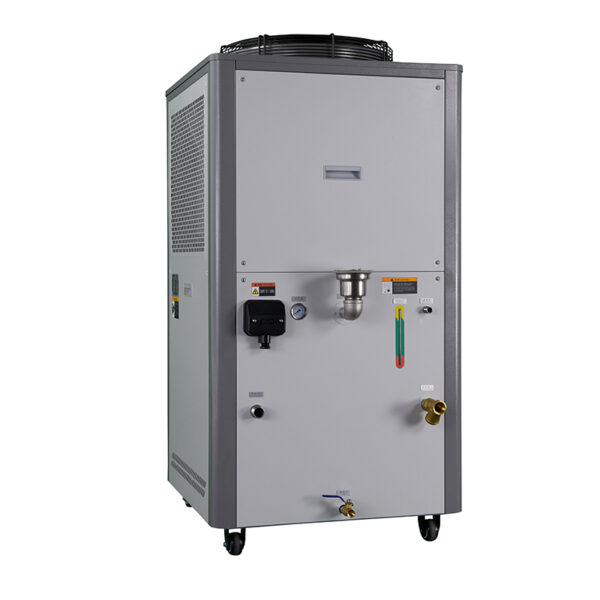

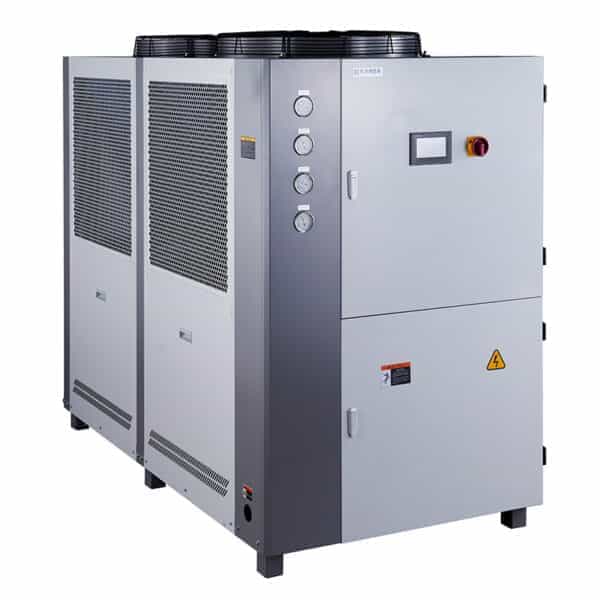

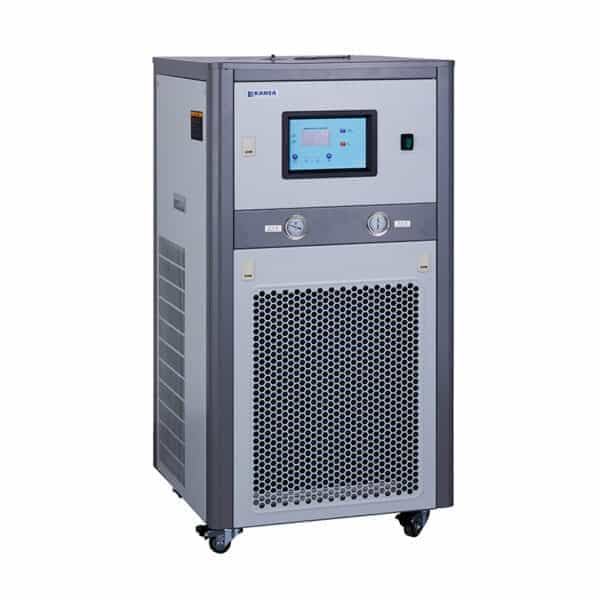

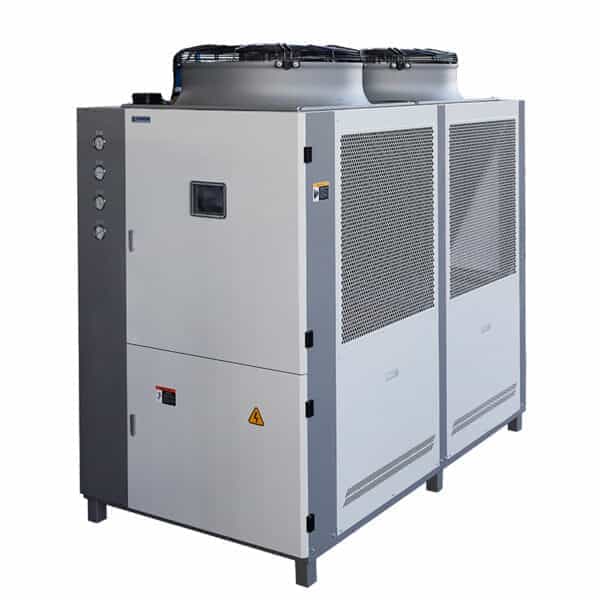

ICA-10L Low-Temperature Industrial Chillers

Cooling capacity: 10.6kW

Total power input: 11.3kW

Pump power input: 1.3kW

Pump head: 42m

Water flow rate: 1.8m³/h

Noise: 65db(A)

Cooling capacity: 10.6kW

Total power input: 11.3kW

Pump power input: 1.3kW

Pump head: 42m

Water flow rate: 1.8m³/h

Noise: 65db(A)

Share:

Message

Email

I. Advantages

The -15°C low-temperature chiller provides a stable -15°C low-temperature cooling source with a temperature control accuracy of ±0.5°C to ±1.5°C. It is compatible with refrigerants such as ethylene glycol and brine, resists frost formation at low temperatures, and has a low failure rate. It also supports intelligent start/stop and fault alarms, making operation and maintenance convenient.

II. Applications

In the industrial sector, it is used for testing the low-temperature embrittlement of plastics and the low-temperature performance of electronic components. In the food industry, it can achieve rapid cooling of meat and quick-frozen food processing. In the pharmaceutical industry, it is suitable for low-temperature storage of biological preparations and cold chain transportation of vaccines, meeting the needs of deep cryogenic temperatures.

I. Advantages

The -15°C low-temperature chiller provides a stable -15°C low-temperature cooling source with a temperature control accuracy of ±0.5°C to ±1.5°C. It is compatible with refrigerants such as ethylene glycol and brine, resists frost formation at low temperatures, and has a low failure rate. It also supports intelligent start/stop and fault alarms, making operation and maintenance convenient.

II. Applications

In the industrial sector, it is used for testing the low-temperature embrittlement of plastics and the low-temperature performance of electronic components. In the food industry, it can achieve rapid cooling of meat and quick-frozen food processing. In the pharmaceutical industry, it is suitable for low-temperature storage of biological preparations and cold chain transportation of vaccines, meeting the needs of deep cryogenic temperatures.

Item / Model			ICA-2L	ICA-3L	ICA-5L	ICA-8L	ICA-10L	ICA-12L
Cooling capacity		kW	1.9	3.1	5.2	7.4	10.6	13.5
Cooling capacity		10 ³ kcal/h	1.6	2.7	4.5	6.5	9.1	11.6
Power source		V/ph/Hz	220/1/50	380/3/50
Total power input		kW	2.6	4.2	6.4	9.0	11.3	13.6
Rated current		A	6.0	9.5	14.0	20.5	24.0	28.0
Compressor	Type		Scroll type
Compressor	Power input	kW	2.0	2.8	4.8	7.2	9.1	11.0
Pump	Power input	kW	0.75	0.75	0.75	1.3	1.3	1.3
Pump	Head	m	42	44	41	45	42	40
Water flow rate		m³ /h	0.33	0.53	0.89	1.3	1.8	2.3
Water flow rate		L/min	5.5	8.8	14.8	21.7	30.0	38.3
Tank capacity		L	40	60	70	100	135	135
Water pipe size		DN	20	25			40
Noise		dB(A)	58	60	61	64	65	66
Weight		kg	120	160	200	240	280	320
Dimension	Lenth	mm	600	680	750	1350	1510	1510
	Width	mm	600	680	750	680	750	750
	High	mm	1160	1360	1480	1360	1480	1480

Item / Model			ICA-15L	ICA-20L	ICA-25L	ICA-30L	ICA-40L	ICA-50L
Cooling capacity		kW	15.8	21.2	27.0	31.8	42.5	54.0
Cooling capacity		10 ³ kcal/h	13.6	18.2	23.2	27.3	36.5	46.5
Power source		V/ph/Hz	380/3/50
Total power input		kW	14.3	19.7	22.5	29.0	41.3	46.0
Rated current		A	32.0	45.0	50.0	70.0	89.0	101.0
Compressor	Type		Scroll type
Compressor	Power input	kW	11.5	16.0	18.0	23.0	32.0	36.0
Pump	Power input	kW	2.2	2.2	4.0	4.0	4.0	4.0
Pump	Head	m	40	42	41	45	42	40
Water flow rate		m³ /h	2.7	3.6	4.6	5.5	7.3	9.3
Water flow rate		L/min	45.0	60.0	77.0	92.0	122.0	155.0
Tank capacity		L	155	230	230	230	300	300
Water pipe size		DN	40	50			65
Noise		dB(A)	66	68	68	69	69	69
Weight		kg	415	620	670	780	1100	1300
Dimension	Lenth	mm	1785	2080	2080	2080	2200	3000
	Width	mm	915	1050	1050	1050	1200	1200
	High	mm	1630	1720	1720	1910	2135	2120

Support customization
