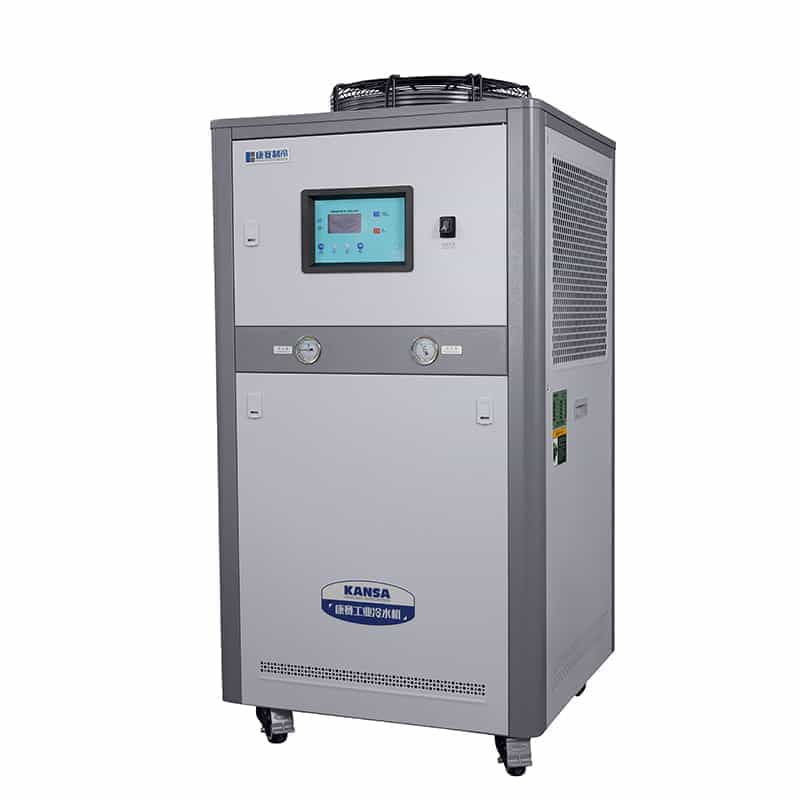

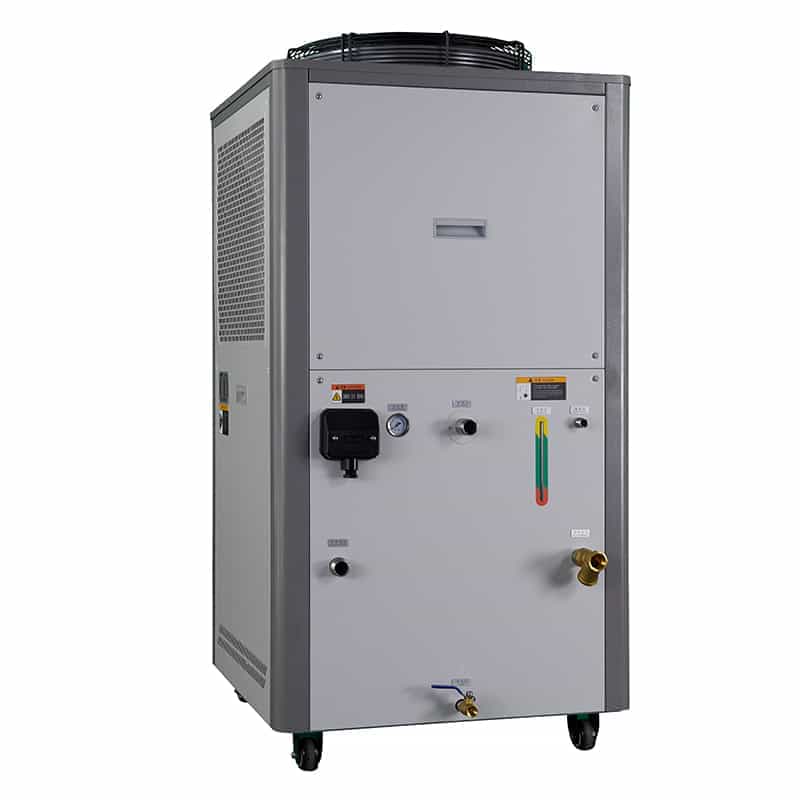

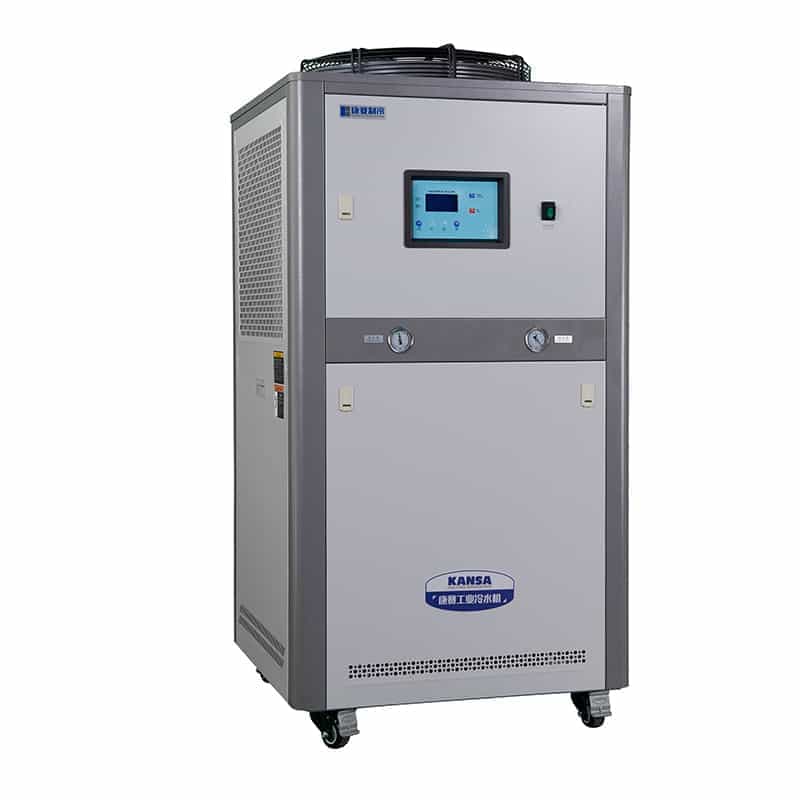

ICA-5G High-Precision Industrial Chillers


Cooling capacity: 15.0kW

Total power input: 5.3kW

Pump power input: 0.55kW

Pump head: 30m

Pump water flow rate: 2.6m³/h

Noise: 67db(A)

Cooling capacity: 15.0kW

Total power input: 5.3kW

Pump power input: 0.55kW

Pump head: 30m

Pump water flow rate: 2.6m³/h

Noise: 67db(A)


Share:

I. Advantages

The core advantage of high-precision chillers lies in their precise temperature control (temperature differential of ±0.05°C to ±0.5°C) and stable operation, which is resistant to interference from voltage fluctuations and ambient temperature changes. Some models include intelligent monitoring systems for real-time temperature and pressure monitoring, facilitating timely adjustments.



II. Applications

These chillers are primarily used in temperature-sensitive applications, such as semiconductor lithography and PCB precision processing, to ensure component performance; biopharmaceutical fermentation and vaccine storage, to ensure experimental and production accuracy; and are also suitable for laboratory spectrometers and medical MRI equipment, meeting stringent temperature control requirements.

I. Advantages

The core advantage of high-precision chillers lies in their precise temperature control (temperature differential of ±0.05°C to ±0.5°C) and stable operation, which is resistant to interference from voltage fluctuations and ambient temperature changes. Some models include intelligent monitoring systems for real-time temperature and pressure monitoring, facilitating timely adjustments.



II. Applications

These chillers are primarily used in temperature-sensitive applications, such as semiconductor lithography and PCB precision processing, to ensure component performance; biopharmaceutical fermentation and vaccine storage, to ensure experimental and production accuracy; and are also suitable for laboratory spectrometers and medical MRI equipment, meeting stringent temperature control requirements.

Item / Model ICA-1G ICA-2G ICA-3G ICA-5G ICA-8G ICA-10G
Cooling capacity kW 2.7 5.0 9.1 15.0 23.0 29.5
10 ³ kcal/h 2.3 4.5 7.8 12.9 19.8 25.4
Power source V/ph/Hz 220V/1/50Hz 380V/3/50Hz
Total power input kW 1.2 2.2 2.9 5.3 8.4 10.5
Rated current A 5.9 11.3 8.2 11.7 20.0 23.4
Compressor Type   Rotor type Flexible scroll type
Power input kW 0.8 1.6 2.3 4.2 6.9 8.7
Condenser Type High efficiency internal thread copper pipe fin type
Fan type High efficiency and low noise axial  fan
Evaporator Type Water tank coil type Shell and tube type
Tank capacity 20 40 50 70 100 135
Pump Type Stainless steel centrifugal
Power input kW 0.25 0.37 0.37 0.55 0.75 0.75
Head m 34 26 25 30 30 27
Water flow rate m³ /h 0.46 0.89 1.6 2.6 4.0 5.1
L/min 7.7 14.8 26.7 43.3 66.0 85.0
Refrigerant Type HCF/CHFC
Throttling mode Expansion valve
Controller Type High precision touch screen controller
Water pipe size DN 15 20 25 25 25 40
Noise dB(A) 58 63 63 67 68 69
Weight kg 90 120 160 200 280 320
Dimension Lenth mm 500 600 680 750 1350 1510
Width mm 500 600 680 750 680 750
High mm 950 1160 1360 1480 1360 1480

Support customization

Item / Model ICA-1G ICA-2G ICA-3G ICA-5G ICA-8G ICA-10G
Cooling capacity kW 2.7 5.0 9.1 15.0 23.0 29.5
10 ³ kcal/h 2.3 4.5 7.8 12.9 19.8 25.4
Power source V/ph/Hz 220V/1/50Hz 380V/3/50Hz
Total power input kW 1.2 2.2 2.9 5.3 8.4 10.5
Rated current A 5.9 11.3 8.2 11.7 20.0 23.4
Compressor Type   Rotor type Flexible scroll type
Power input kW 0.8 1.6 2.3 4.2 6.9 8.7
Condenser Type High efficiency internal thread copper pipe fin type
Fan type High efficiency and low noise axial  fan
Evaporator Type Water tank coil type Shell and tube type
Tank capacity 20 40 50 70 100 135
Pump Type Stainless steel centrifugal
Power input kW 0.25 0.37 0.37 0.55 0.75 0.75
Head m 34 26 25 30 30 27
Water flow rate m³ /h 0.46 0.89 1.6 2.6 4.0 5.1
L/min 7.7 14.8 26.7 43.3 66.0 85.0
Refrigerant Type HCF/CHFC
Throttling mode Expansion valve
Controller Type High precision touch screen controller
Water pipe size DN 15 20 25 25 25 40
Noise dB(A) 58 63 63 67 68 69
Weight kg 90 120 160 200 280 320
Dimension Lenth mm 500 600 680 750 1350 1510
Width mm 500 600 680 750 680 750
High mm 950 1160 1360 1480 1360 1480

Support customization

Technological innovation

We never stop innovating…
Stainless steel shell and tube evaporator
Stainless steel shell and tube evaporator
I nnovative V-shaped fin condenser
I nnovative V-shaped fin condenser
Innovative new cylindrical water tank
Innovative new cylindrical water tank
High efficiency and low noise fan
High efficiency and low noise fan
Intelligent touch screen controller
Intelligent touch screen controller
High precision controller
High precision controller

Powerful energy saving

Very power-saving!
Innovative refrigerant distribution technology
Innovative refrigerant distribution technology
Professional air flow channel design
Professional air flow channel design
Air volume automatic control
Air volume automatic control
Copper tube with internal thread
Copper tube with internal thread
Sinusoidal heat transfer fins
Sinusoidal heat transfer fins
Electric expansion PID technology
Electric expansion PID technology

Quality control

Every detail, we are meticulous …
Famous brand compressor
Famous brand compressor
Imported brand accessories
Imported brand accessories
Keep improving everywhere
Keep improving everywhere
3D pipe bending machine
3D pipe bending machine
Automatic refrigerant adding machine
Automatic refrigerant adding machine
Automatic welding machine
Automatic welding machine

Precision technology

Precision technology makes products better
Sheet metal precision drawing
Sheet metal precision drawing
Drawing forming guide ring
Drawing forming guide ring
Robot bending machine
Robot bending machine
Laser welding
Laser welding
Automatic cutting machine
Automatic cutting machine
Automatic joint welding
Automatic joint welding
