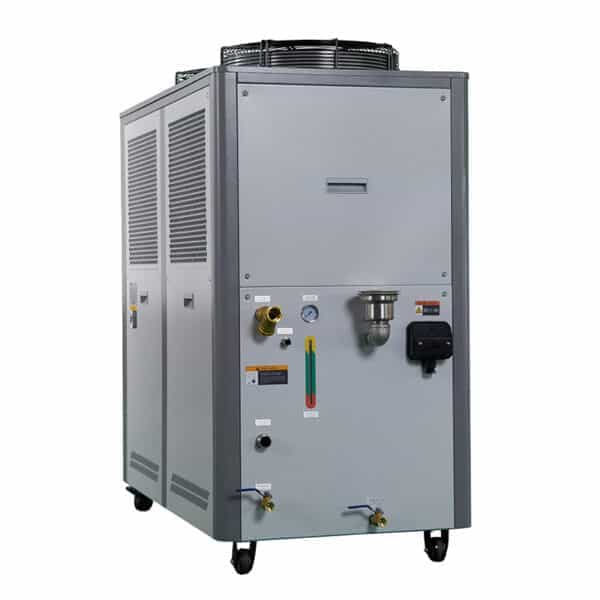

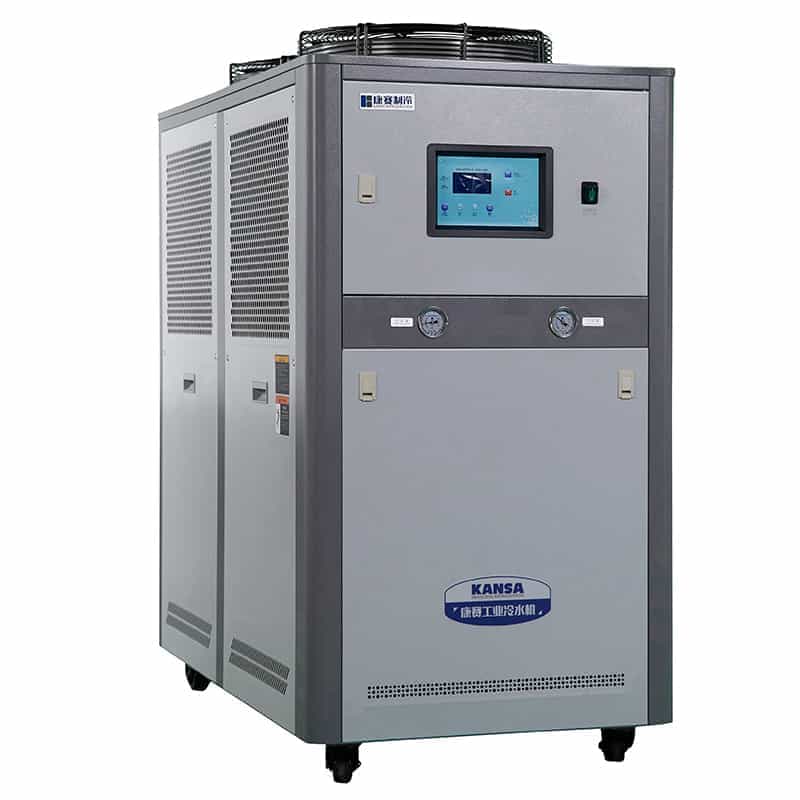

Cooling capacity: 23.0kW
Total power input: 8.4kW
Pump power input: 0.75kW
Pump head: 30m
Pump water flow rate: 4.0m³/h
Noise: 68db(A)
Cooling capacity: 23.0kW
Total power input: 8.4kW
Pump power input: 0.75kW
Pump head: 30m
Pump water flow rate: 4.0m³/h
Noise: 68db(A)
I. Advantages
The core advantage of high-precision chillers lies in their precise temperature control (temperature differential of ±0.05°C to ±0.5°C) and stable operation, which is resistant to interference from voltage fluctuations and ambient temperature changes. Some models include intelligent monitoring systems for real-time temperature and pressure monitoring, facilitating timely adjustments.
II. Applications
These chillers are primarily used in temperature-sensitive applications, such as semiconductor lithography and PCB precision processing, to ensure component performance; biopharmaceutical fermentation and vaccine storage, to ensure experimental and production accuracy; and are also suitable for laboratory spectrometers and medical MRI equipment, meeting stringent temperature control requirements.
I. Advantages
The core advantage of high-precision chillers lies in their precise temperature control (temperature differential of ±0.05°C to ±0.5°C) and stable operation, which is resistant to interference from voltage fluctuations and ambient temperature changes. Some models include intelligent monitoring systems for real-time temperature and pressure monitoring, facilitating timely adjustments.
II. Applications
These chillers are primarily used in temperature-sensitive applications, such as semiconductor lithography and PCB precision processing, to ensure component performance; biopharmaceutical fermentation and vaccine storage, to ensure experimental and production accuracy; and are also suitable for laboratory spectrometers and medical MRI equipment, meeting stringent temperature control requirements.
Item / Model | ICA-1G | ICA-2G | ICA-3G | ICA-5G | ICA-8G | ICA-10G | ||
Cooling capacity | kW | 2.7 | 5.0 | 9.1 | 15.0 | 23.0 | 29.5 | |
10 ³ kcal/h | 2.3 | 4.5 | 7.8 | 12.9 | 19.8 | 25.4 | ||
Power source | V/ph/Hz | 220V/1/50Hz | 380V/3/50Hz | |||||
Total power input | kW | 1.2 | 2.2 | 2.9 | 5.3 | 8.4 | 10.5 | |
Rated current | A | 5.9 | 11.3 | 8.2 | 11.7 | 20.0 | 23.4 | |
Compressor | Type | Rotor type | Flexible scroll type | |||||
Power input | kW | 0.8 | 1.6 | 2.3 | 4.2 | 6.9 | 8.7 | |
Condenser | Type | High efficiency internal thread copper pipe fin type | ||||||
Fan type | High efficiency and low noise axial fan | |||||||
Evaporator | Type | Water tank coil type | Shell and tube type | |||||
Tank capacity | 20 | 40 | 50 | 70 | 100 | 135 | ||
Pump | Type | Stainless steel centrifugal | ||||||
Power input | kW | 0.25 | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | |
Head | m | 34 | 26 | 25 | 30 | 30 | 27 | |
Water flow rate | m³ /h | 0.46 | 0.89 | 1.6 | 2.6 | 4.0 | 5.1 | |
L/min | 7.7 | 14.8 | 26.7 | 43.3 | 66.0 | 85.0 | ||
Refrigerant | Type | HCF/CHFC | ||||||
Throttling mode | Expansion valve | |||||||
Controller | Type | High precision touch screen controller | ||||||
Water pipe size | DN | 15 | 20 | 25 | 25 | 25 | 40 | |
Noise | dB(A) | 58 | 63 | 63 | 67 | 68 | 69 | |
Weight | kg | 90 | 120 | 160 | 200 | 280 | 320 | |
Dimension | Lenth | mm | 500 | 600 | 680 | 750 | 1350 | 1510 |
Width | mm | 500 | 600 | 680 | 750 | 680 | 750 | |
High | mm | 950 | 1160 | 1360 | 1480 | 1360 | 1480 |
Support customization
Item / Model | ICA-1G | ICA-2G | ICA-3G | ICA-5G | ICA-8G | ICA-10G | ||
Cooling capacity | kW | 2.7 | 5.0 | 9.1 | 15.0 | 23.0 | 29.5 | |
10 ³ kcal/h | 2.3 | 4.5 | 7.8 | 12.9 | 19.8 | 25.4 | ||
Power source | V/ph/Hz | 220V/1/50Hz | 380V/3/50Hz | |||||
Total power input | kW | 1.2 | 2.2 | 2.9 | 5.3 | 8.4 | 10.5 | |
Rated current | A | 5.9 | 11.3 | 8.2 | 11.7 | 20.0 | 23.4 | |
Compressor | Type | Rotor type | Flexible scroll type | |||||
Power input | kW | 0.8 | 1.6 | 2.3 | 4.2 | 6.9 | 8.7 | |
Condenser | Type | High efficiency internal thread copper pipe fin type | ||||||
Fan type | High efficiency and low noise axial fan | |||||||
Evaporator | Type | Water tank coil type | Shell and tube type | |||||
Tank capacity | 20 | 40 | 50 | 70 | 100 | 135 | ||
Pump | Type | Stainless steel centrifugal | ||||||
Power input | kW | 0.25 | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | |
Head | m | 34 | 26 | 25 | 30 | 30 | 27 | |
Water flow rate | m³ /h | 0.46 | 0.89 | 1.6 | 2.6 | 4.0 | 5.1 | |
L/min | 7.7 | 14.8 | 26.7 | 43.3 | 66.0 | 85.0 | ||
Refrigerant | Type | HCF/CHFC | ||||||
Throttling mode | Expansion valve | |||||||
Controller | Type | High precision touch screen controller | ||||||
Water pipe size | DN | 15 | 20 | 25 | 25 | 25 | 40 | |
Noise | dB(A) | 58 | 63 | 63 | 67 | 68 | 69 | |
Weight | kg | 90 | 120 | 160 | 200 | 280 | 320 | |
Dimension | Lenth | mm | 500 | 600 | 680 | 750 | 1350 | 1510 |
Width | mm | 500 | 600 | 680 | 750 | 680 | 750 | |
High | mm | 950 | 1160 | 1360 | 1480 | 1360 | 1480 |
Support customization
Cooling capacity: 2.7kW Total power input: 1.2kW Pump power input: 0.25kW Pump head: 34m Pump water flow rate : 0.46m³/h Noise: 58db(A)
Cooling capacity: 5.0kW Total power input: 2.2kW Pump power input: 0.37kW Pump head: 26m Pump water flow rate : 0.89m³/h Noise: 63db(A)
Cooling capacity: 9.1kW Total power input: 2.9kW Pump power input: 0.37kW Pump head: 25m Pump water flow rate : 1.6m³/h Noise: 63db(A)
Cooling capacity: 15.0kW Total power input: 5.3kW Pump power input: 0.55kW Pump head: 30m Pump water flow rate : 2.6m³/h Noise: 67db(A)
Cooling capacity: 29.5kW Total power input: 10.5kW Pump power input: 0.75kW Pump head: 27m Pump water flow rate : 5.1m³/h Noise: 69db(A)
